Residential Single Ply Roofing – Best Practice

Traditionally, single ply membrane roofs have tended to be associated with larger-scale commercial and industrial schemes. Today however, they are becoming increasingly popular on residential projects for reasons of performance, aesthetics, and the knowledge and expertise of specialist installers, such as AJ Lucas Roofing Contractors.

Established by Antony Lucas in 1986, the Kent-based company is part of the SIG Design & Technology Accredited Contractor (DATAC) scheme, which provides assurance that SIG single ply products, including IKO Armourplan PVCFDT Rhepanol PIB and IKO Spectraplan, are correctly installed. So, what are the benefits of using single ply membranes on residential projects and how should architects approach their design and specification? Antony Lucas discusses these questions with Architecture Today’s Technical Editor John Ramshaw, and illustrates key points using three cases studies.

What are the main benefits of using single ply membrane roofs on residential projects?

Single ply roofs not only look modern and aesthetically pleasing, but are also highly practical for domestic environments. Moss and algae do not grow on them, which reduces maintenance and prolongs the life of the roof. Furthermore, if the structure is being used for rainwater recycling, the run-off is free from roof-related contaminants, such as alkalies and bitumen. Unlike some other flat roofing materials, membranes do not pose a fire risk during installation, as they rely on hot air welds rather than flame torches. This is particularly beneficial when working on timber-frame structures. PVC membranes are also particularly well suited to accommodating structural movement in timber-framed buildings. Other benefits include design material flexibility and cost effectiveness.

Are there any disadvantages?

The only real disadvantage is that single ply membranes are more susceptible to puncturing than some other flat roofing materials, which can lead to leaks. But this can be avoided by simply protecting any area that is undergoing maintenance or light traffic, for example by ensuring that a window cleaner’s ladder is not in direct contact with the membrane.

What advice would you give specifiers with regards to specifying and designing membrane roofs?

Decisions regarding roofing specification should always be made on a project-by-project basis. In general, single ply membranes are ideally suited to ‘primary’ roofs where there is only light traffic. They are not suitable for exposed balconies or terrace areas without suitable protection. Liquid roofing products or asphalt may be more advisable for these applications. In my opinion, EPDM membrane roofs do not look as ‘sharp’ as PVC ones. They can appear ‘saggy’ because they are installed in one go, whereas PVC membranes are mechanically fixed in a piecemeal process, and end up closely following the contours of the roof.

In terms of detailing, it is worth ensuring that membranes are not only mechanically fixed but also bonded to upstands. This will ensure that the roof surface remains smooth and ‘crease-free’ even if there is some movement around the opening. Specifiers should also pay particular attention to on-site programming. Membrane roofs should not be used as loading bays or material stores as work progresses on site. Failure to do this can result in unplanned penetrations, and a roof that resembles a patchwork quilt after all the repairs have been made.

Residential Single Ply Roofing - West Motney Way, Rainham, Kent

West Motney Way, Rainham, Kent

Project: West Motney Way, Rainham, Kent

Developer: McCulloch Homes
Product: IKO Armourplan P Reinforced

The project comprises three two-storey, timber-clad houses with steeply sloping pitched roofs. An IKO Armourplan P Reinforced single ply membrane was chosen for reasons of performance and aesthetics. Specified in a slate grey colour, the polyester-reinforced PVC membrane was installed with welded PVC standing seam profiles to give the appearance of a metal roof, but without the cost or noise implications.

West Motney Way, Rainham, Kent

West Motney Way, Rainham, Kent

Suitable for both flat and pitched roofs, the covering includes enhanced mechanical properties compared to standard PVC products, and is UV-stable. The latter is particularly important with regards to the roof’s long-term appearance and durability.

Residential Single Ply - West Motney Way, Rainham, Kent

West Motney Way, Rainham, Kent

In total, 800 square metres of IKO Armourplan P Reinforced was installed over a period of six weeks. The roof build-up comprises timber rafters supporting an 18mm plywood deck, followed by 120mm rigid insulation and an Armourplan membrane – both of which are mechanically-fixed. “It was a challenging job as the roofs are 15 metres long with 45-degree pitches”, recounts Lucas. “The installation team worked off scaffolding built to only half way up the roof, which made injecting the membrane very difficult. We had to weld it while ensuring that the standing seams remained absolutely straight.”

Residential Single Ply - Spencer Courtyard, Finchley, London

Spencer Courtyard, Finchley, London

Project: Spencer Courtyard, Finchley, London

Developer: Monbally Developments
Products: IKO Armourplan GB and sedum green roof

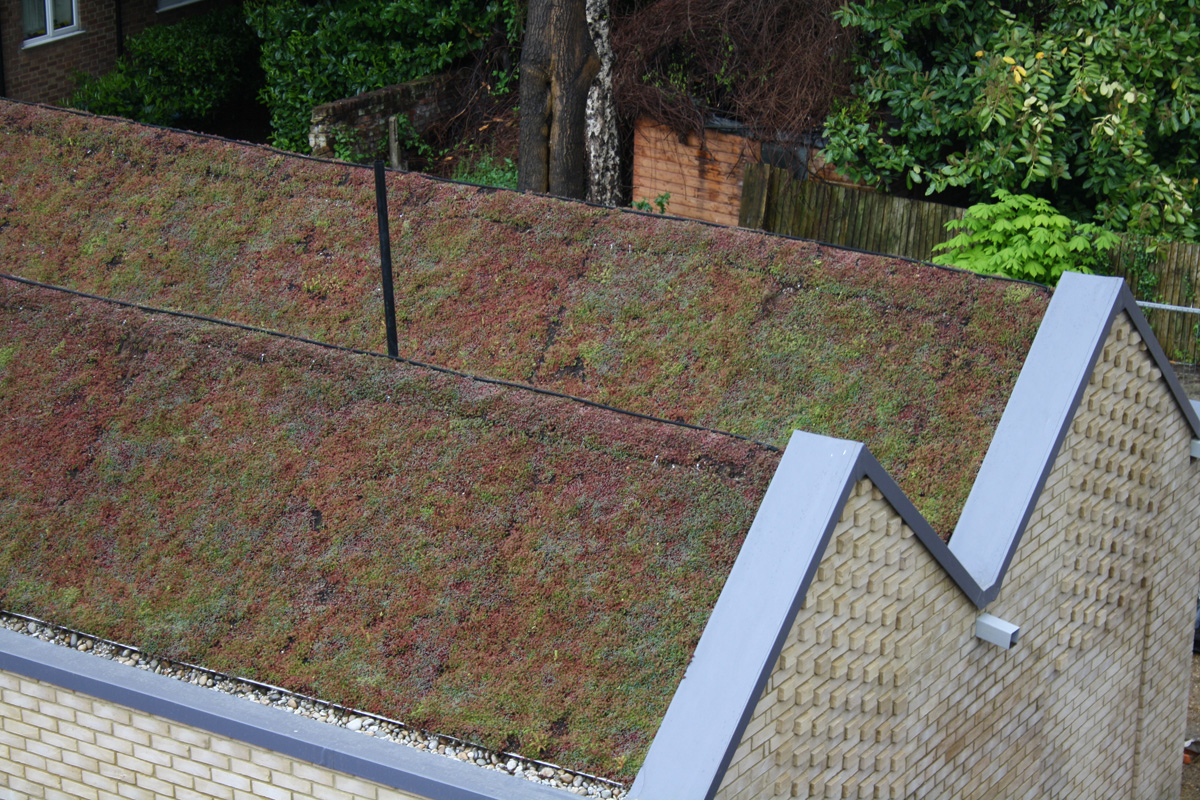

This self-built housing development comprises seven dwellings covered by 13 steeply pitched sedum roofs. Covering an area of 600 square metres, the roofs are separated by narrow, membrane-lined and pebble-filled gutters. IKO Armourplan GB was specified as it is specifically designed for green and ballasted roofs. The robust fleece-backed PVC membrane comes in 1.06-metre-wide rolls, making it easier to install on small-scale projects and reducing the likelihood of waste.

Residential Single Ply - Spencer Courtyard, Finchley, London

Spencer Courtyard, Finchley, London

 Unusually, the plywood roof deck is exposed internally in place of a conventional plasterboard ceiling. This meant that the membrane could only be mechanically fixed along the rafters to maintain a fixing-free aesthetic on the exposed inner face of the plywood. The sedum roof covering was chosen for environmental reasons and to minimise the project’s visual impact when viewed from the taller residential buildings surrounding the infill site.
Residential Single Ply - Spencer Courtyard, Finchley, London

The ‘fifth’ elevation is further articulated by crisply detailed metal capping trims, which are applied to each gable end. Fabricated by AJ Lucas, the trims were supplied with IKO Armourplan already bonded to the top surface. “All the roofing materials had to be mechanically fixed to prevent the membrane from rolling”, says Lucas. “The technically demanding installation took three months to complete.”

Corporation Street, Rochester, Kent -  Residential Single Ply Roofing with Green Roof

Corporation Street, Rochester, Kent

Project: Corporation Street, Rochester, Kent

Developer: Chartway Group
Products: IKO Armourplan PSG and sedum green roof

The project comprises four five-storey residential blocks accommodating 89 apartments. The single ply membrane and sedum roofs cover an area of 2300 square metres and are laid on rigid insulation boards that have been cut to falls over a concrete deck. “We made the decision to use a fully bonded membrane roof system early on”, explains Lucas. “The aim was to mitigate the dangers of wind uplift and to avoid mechanically fixing into the masonry shell. An IKO Armourplan PSG membrane was specified as it is inherently suited to a fully bonded approach.” The roof build comprises a bitumen-primed concrete roof deck, a vapour control layer, bonded rigid insulation, a bonded Armourplan membrane, then a drainage sheet, aggregate, and finally a sedum top surface.
